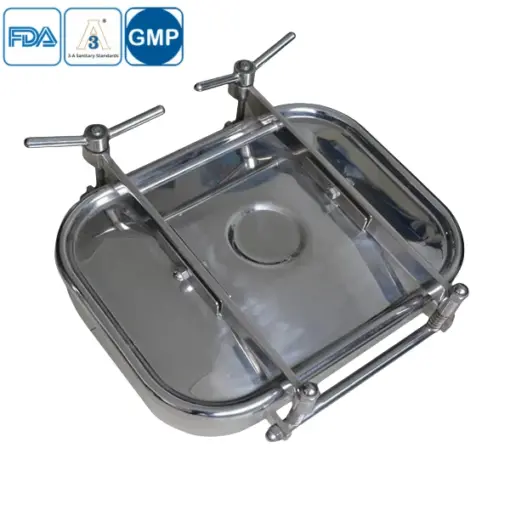

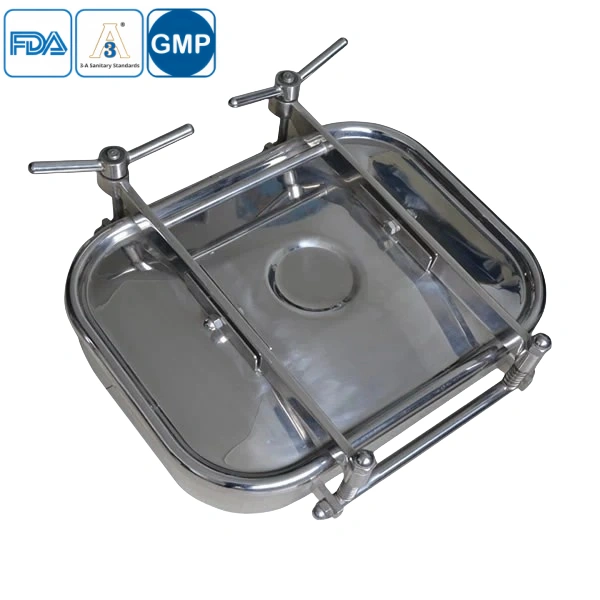

Sanitary square manway for easy process control
The Sanitary square manway is engineered for superior performance in hygienic processing systems, featuring 304/316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-release clamp design enables fast installation and maintenance, while the precision-machined surface ensures a perfect seal to prevent contamination. Manufactured to comply with AS, BS, 3A, SMS, and DIN standards, this manway meets FDA, 3A, and CE certifications for strict hygiene requirements. Ideal for pharmaceutical and food processing industries, it provides easy access for inspection and cleaning in tanks or pipelines. The standardized dimensions ensure compatibility with existing tri-clamp connections, reducing downtime during retrofits.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Sanitary square manway Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary Manway for detailed specifications.
