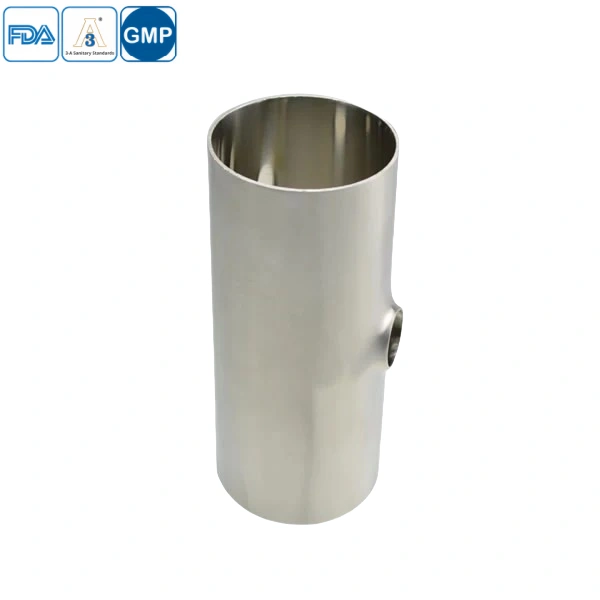

AS Sanitary Stainless Steel Welded Short Tee for easy process control
The AS Sanitary Stainless Steel Welded Short Tee is engineered for superior performance in hygienic fluid transfer systems. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability, complying with AS, BS, 3A, SMS, and DIN standards. Its precision-welded tri-clamp connections guarantee leak-free operation, while the compact design minimizes space requirements without compromising flow efficiency. Certified by FDA, 3A, and CE, this tee is ideal for pharmaceutical and food processing industries where sanitary conditions are critical. The smooth internal surface (Ra≤0.8μm) prevents bacterial buildup, meeting strict hygiene requirements.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
AS Sanitary Stainless Steel Welded Short Tee Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
