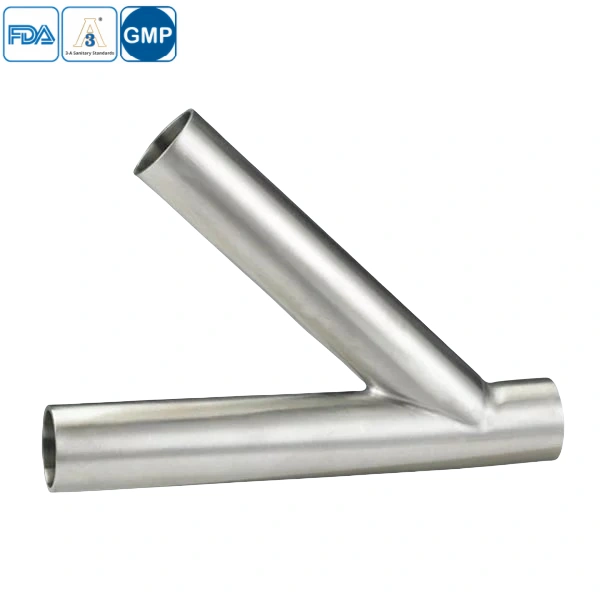

Sanitary Stainless Steel 45 Degree Welded Y Tee for easy process control
The Sanitary Stainless Steel 45 Degree Welded Y Tee is engineered for precision fluid handling in hygienic applications. Constructed from premium 304 or 316L stainless steel, it ensures superior corrosion resistance and durability. The 45-degree welded design optimizes flow efficiency while minimizing turbulence, making it ideal for high-purity systems. Manufactured to AS, BS, 3A, SMS, and DIN standards, this Y tee complies with FDA, 3A, and CE certifications for strict sanitary requirements. Its tri-clamp connections enable quick assembly and disassembly, reducing downtime during maintenance. Perfect for pharmaceutical and food processing industries, this fitting maintains sterile conditions with its electropolished surface (Ra≤0.8μm) and crevice-free welds.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Sanitary Stainless Steel 45 Degree Welded Y Tee Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
