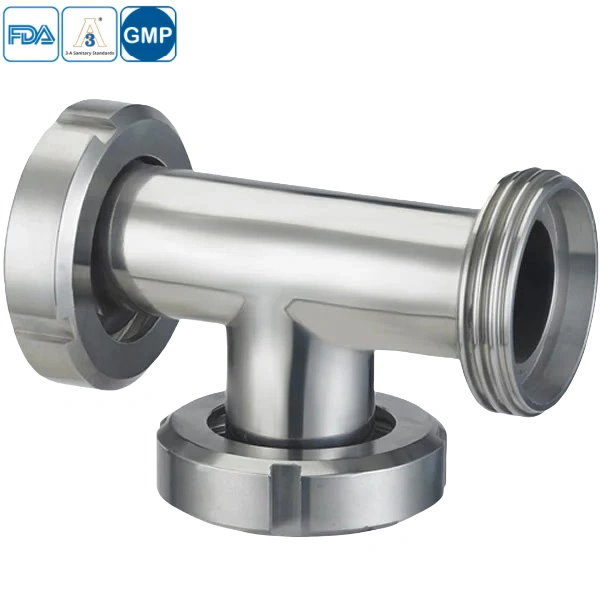

Stainless steel equal tee with male-union connection for easy process control
This stainless steel equal tee with male-union connection is engineered for superior performance in hygienic fluid systems. Constructed from premium 304/316L stainless steel, it ensures excellent corrosion resistance and durability in demanding environments. The male-union connection design allows for quick installation and disassembly, minimizing downtime during maintenance. Precision-manufactured to comply with AS, BS, 3A, SMS, and DIN standards, it meets stringent FDA, 3A, and CE certifications for food and pharmaceutical applications. Ideal for dairy processing, brewing, and biopharmaceutical systems, this fitting maintains sanitary conditions with its smooth, crevice-free surface finish. The equal tee configuration enables seamless flow distribution while maintaining system integrity under high-pressure conditions.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Stainless steel equal tee with male-union connection Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
