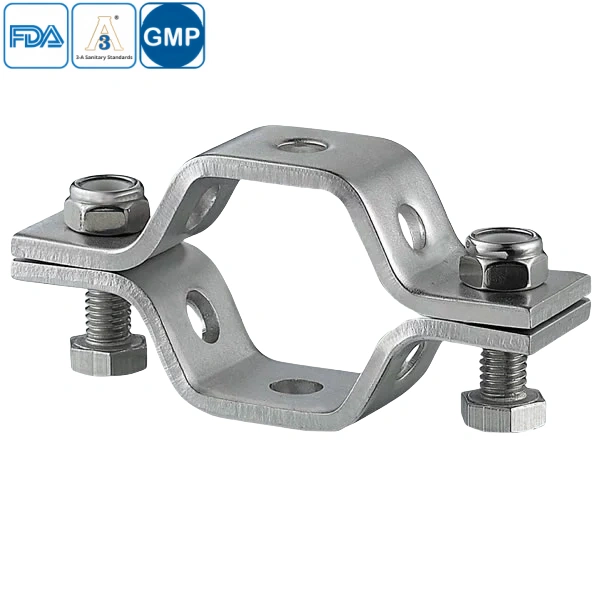

Sanitary Hexagon Pipe Holder Without Base for easy process control
The Sanitary Hexagon Pipe Holder Without Base is engineered for superior performance in hygienic piping systems. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability, meeting FDA, 3A, and CE certification requirements. Its hexagon-shaped design provides enhanced grip and stability during installation, while the absence of a base allows for flexible positioning in tight spaces. Precision-manufactured to AS, BS, 3A, SMS, and DIN standards, this pipe holder guarantees seamless compatibility with tri-clamp connections. Ideal for pharmaceutical and food processing industries, it simplifies maintenance with a quick-release mechanism for efficient disassembly.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Sanitary Hexagon Pipe Holder Without Base Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
