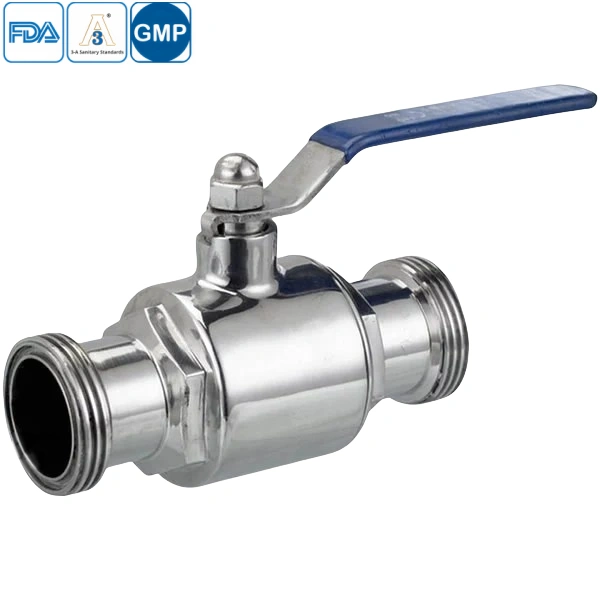

Sanitary 2-Way Ball Valve – Male Threaded
Crafted from premium 304/316L stainless steel, this sanitary 2-way ball valve with male threaded ends ensures superior corrosion resistance and hygienic performance in critical applications. Its full-bore design minimizes flow turbulence, while the integrated quick-disassembly mechanism enables effortless cleaning and maintenance—essential for pharmaceutical and dairy processing systems. Precision-engineered to comply with AS, BS, 3A, SMS, and DIN standards, the valve meets rigorous FDA and CE certifications for food-grade operations. The electropolished surface (Ra ≤ 0.8μm) prevents bacterial adhesion, maintaining product purity during liquid transfer processes.
For complete pipeline integrity, pair this valve with clamp gaskets for pressure-resistant sealing, single-pin heavy duty clamps to secure tri-clamp joints, and pipe holders for vibration-free pipeline alignment. These components collectively enhance system stability while meeting SIP/CIP requirements.
Sanitary 2-Way Ball Valve – Male Threaded Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
