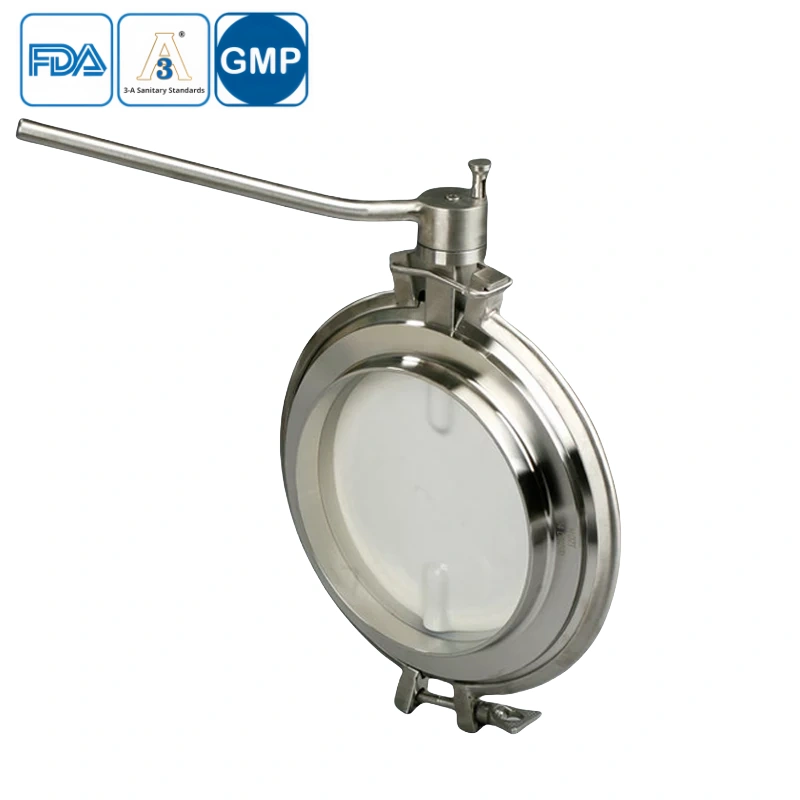

Sanitary Powder Butterfly Valve for easy process control
The Sanitary Powder Butterfly Valve is engineered for superior performance in hygienic applications, featuring 304 and 316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-release design allows for fast disassembly and cleaning, ensuring compliance with AS, BS, 3A, SMS, and DIN standards, as well as FDA, 3A, and CE certifications. The valve’s smooth internal surface minimizes powder buildup, making it ideal for pharmaceutical and food processing industries. The tri-clamp connections provide secure, leak-free sealing, while the compact design optimizes space efficiency in high-purity systems.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure connections and stable pipeline support. These accessories enhance leak-proof performance and simplify maintenance for long-term hygienic operation.
Sanitary Powder Butterfly Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
