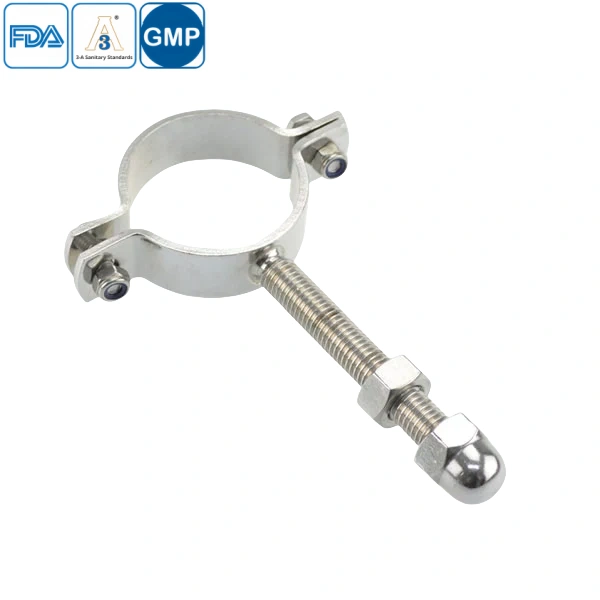

Stainless Steel Pipe Holder with Bolt Nut for easy process control
Crafted from premium 304/316L stainless steel, this Stainless Steel Pipe Holder with Bolt Nut ensures exceptional corrosion resistance and durability in demanding environments. Its quick-release bolt-nut design enables fast installation and maintenance without compromising structural integrity. Manufactured to AS, BS, 3A, SMS, and DIN standards, the holder meets FDA, 3A, and CE certifications for hygienic applications. The reinforced clamping mechanism provides vibration-free pipeline support, ideal for pharmaceutical and food processing systems requiring sterile connections. Compatible with tri-clamp fittings, it maintains system integrity under high-pressure conditions while allowing easy disassembly for cleaning.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Stainless Steel Pipe Holder with Bolt Nut Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
