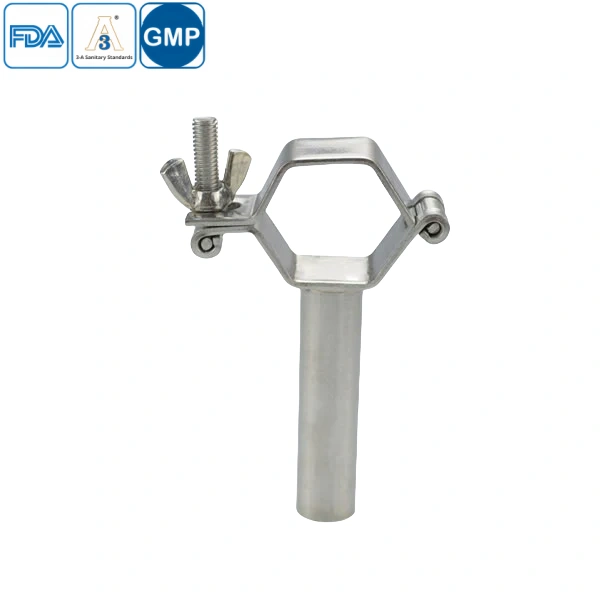

Hygienic Hex Pipe Holder for easy process control
The Hygienic Hex Pipe Holder is engineered with premium 304/316L stainless steel for superior corrosion resistance and durability in demanding environments. Its innovative hex-shaped design ensures secure pipe fixation while allowing quick installation and removal for maintenance. Manufactured to comply with AS, BS, 3A, SMS, and DIN standards, this holder meets FDA, 3A, and CE certifications for hygienic applications. The precision-machined surface (Ra≤0.8μm) prevents bacterial accumulation, making it ideal for pharmaceutical and food processing industries where sterile conditions are critical. The integrated tri-clamp compatibility simplifies pipeline connections while maintaining system integrity.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Hygienic Hex Pipe Holder Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
