Hygienic U type manual diaphragm valve for easy process control

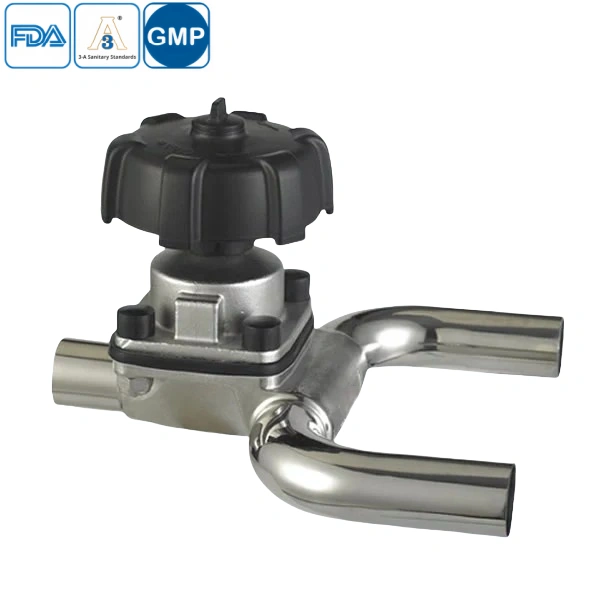

The hygienic U-type manual diaphragm valve is engineered for superior performance in critical sanitary applications. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability, meeting FDA, 3A, and CE certifications. Its innovative U-shaped design minimizes dead space, facilitating thorough cleaning and preventing contamination—ideal for pharmaceutical and food processing industries. The valve features a quick-disassembly mechanism for effortless maintenance, while its standardized dimensions comply with AS, BS, DIN, and SMS specifications. The manual operation provides precise flow control, making it a reliable choice for sterile fluid handling systems.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-proof tri-clamp connections and stable pipeline integration. These accessories enhance long-term hygienic operation and simplify maintenance.
Hygienic U type manual diaphragm valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
