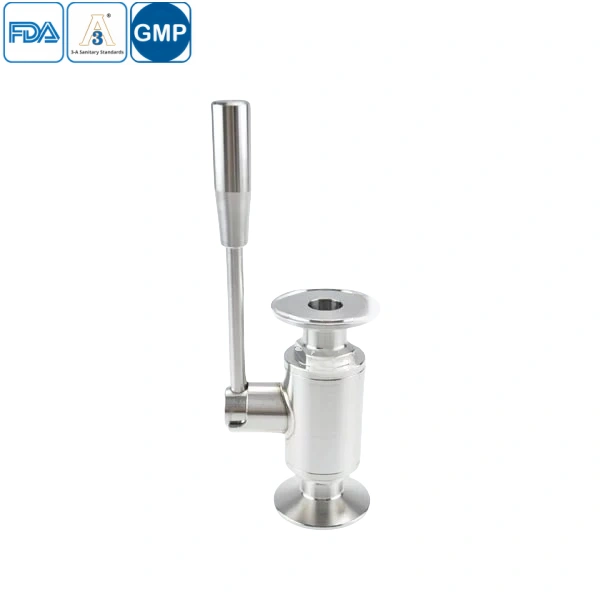

Hygienic 2-Way Ball Valve – Tri-Clamp for easy process control
Crafted from premium 304 or 316L stainless steel, this hygienic 2-way ball valve delivers exceptional corrosion resistance and FDA/3A/CE compliance for contamination-free fluid control. Its full-bore design minimizes pressure drop while the quick-disconnect tri-clamp connections enable rapid assembly and CIP/SIP cleaning. Precision-machined to ASME BPE, DIN 11864, and SMS standards, the valve ensures zero dead-leg operation and bubble-tight shutoff. Engineered for pharmaceutical and food processing applications, it guarantees sterile integrity in critical processes like biopharmaceutical transfer or dairy homogenization. The fire-safe construction and ISO 5211 mounting pad further enhance reliability in high-purity systems requiring ASME B31.3 compliance.
For leak-proof system integration, pair this valve with tri-clamp gaskets and heavy-duty clamps. These ensure hygienic sealing and vibration resistance, while our sanitary pipe supports maintain alignment stability. Together, they optimize sanitary performance and reduce maintenance downtime in sterile processing lines.
Stainless Steel Hygienic 2-Way Ball Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
