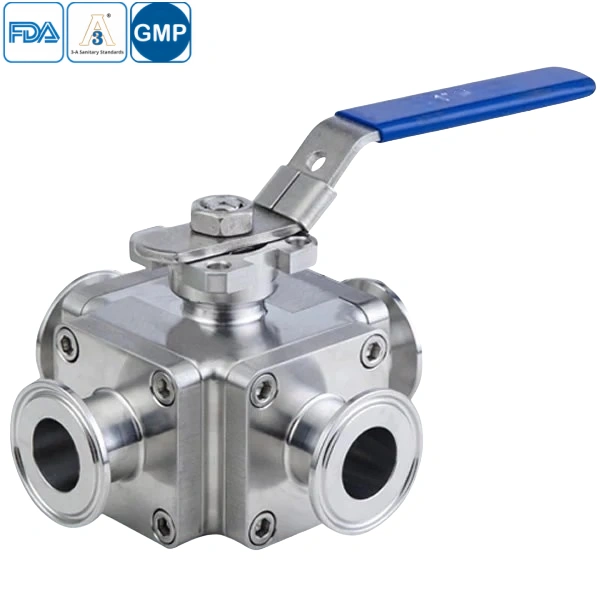

Stainless steel Forged Hygienic Manual 4way Ball Valve for easy process control
The Stainless Steel Forged Hygienic Manual 4-Way Ball Valve is engineered for superior performance in demanding sanitary applications. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability, meeting FDA, 3A, and CE certification standards. Its forged body design enhances structural integrity, while the quick-disconnect mechanism allows for effortless disassembly and cleaning—critical for pharmaceutical and food processing industries. The valve’s precision-machined 4-way flow control enables versatile piping configurations, complying with AS, BS, SMS, and DIN dimensional standards. Electropolished surfaces minimize bacterial adhesion, making it ideal for sterile fluid handling systems
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Stainless steel Forged Hygienic Manual 4way Ball Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
