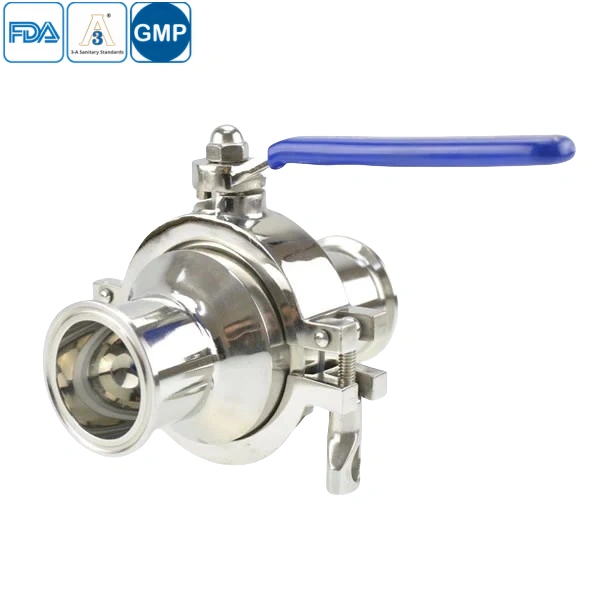

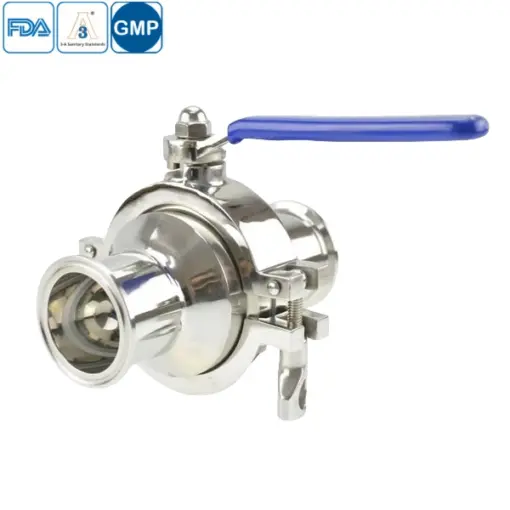

Food processing stainless steel manual ball valve with tri-clamp connection and non-retention design for hygienic applications

Stainless Steel Food Processing Manual Ball Valve – Tri-Clamp Non-Retention

Material:SS 304 or SS 316L for option
Medium:Water,oil,milk,beverage,sanitary fluid etc
Connection:Butt-Welded,Thread,Clamped,FLange
Specification:1″-6″
Pressure:0-20Bar
WorkingTemperature:-20°~120°
Standard: AS,BS,3A,DIN,SMS,ISO
Gasket:EPDM/SILICON/PTFE/VITON
Certification: 3A,FDA,CE
Ball Valve Catalog
View Sizes and Dimensions

Description

Non-Retention Manual Ball Valve – Tri-Clamp

This Stainless Steel Food Processing Manual Ball Valve features 304/316L stainless steel construction for excellent corrosion resistance and hygienic performance. Its tri-clamp non-retention design enables quick disassembly without tools, streamlining cleaning and maintenance in compliance with AS, BS, 3A, SMS, and DIN standards. Certified by FDA, 3A, and CE, it ensures full adherence to strict sanitary requirements for pharmaceutical and food processing applications. The polished interior surface (Ra≤0.8μm) prevents bacterial growth and product accumulation, while the manual handle allows precise flow control for liquids, semi-solids, and gases in high-purity systems.

For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder in order to safely connect this product to the system. These related fittings help ensure leak-free tri-clamp connections, stable pipeline support, and simplified maintenance for long-term hygienic operation.

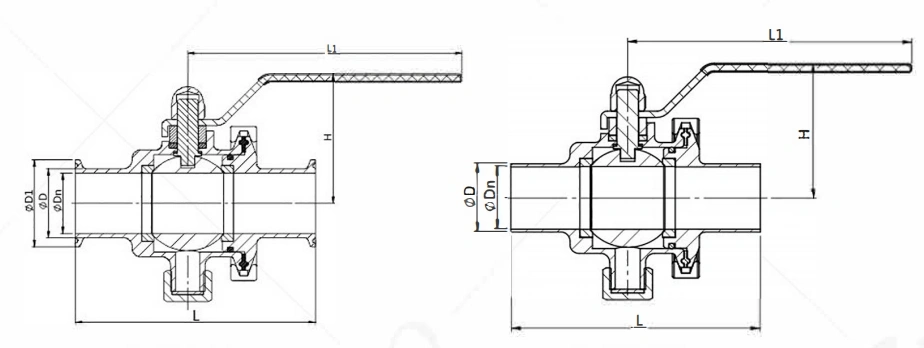

Non-Retention Ball Valve Part Numbers & Dimensions

none-rention-ball-valve

Sanitary Standards & Dimensional Reference

This table compares commonly used sanitary standards for Australian, European, and international hygienic piping systems, helping engineers and buyers select the correct specification. For detailed dimensions, please contact our sales team.

Item	AS1528	BS4825	DIN 11864	3A	SMS	ISO/RJT
Region	Australia	UK / Europe	Europe	Global / USA	Global / Scandinavia origin	Global / Scandinavia origin
Typical Industry	Food, Beverage, Dairy	Food, Pharma	Pharma, High Hygiene	Dairy, Food	Dairy	Food
Material	304 / 316L	304 / 316L	316L	304 / 316L	304 / 316L	304 / 316L
Connection Type	Clamp / Weld	Clamp / Weld	Clamp / Weld	Clamp	Weld	Union
Surface Finish	Hygienic Polish	Hygienic Polish	High Polish	Sanitary Finish	Sanitary Finish	Sanitary Finish
Dimensions & Remarks: Refer to dimensional diagram for reference. For precise dimensional drawings, certifications, and custom sizes, please contact our sales team.
