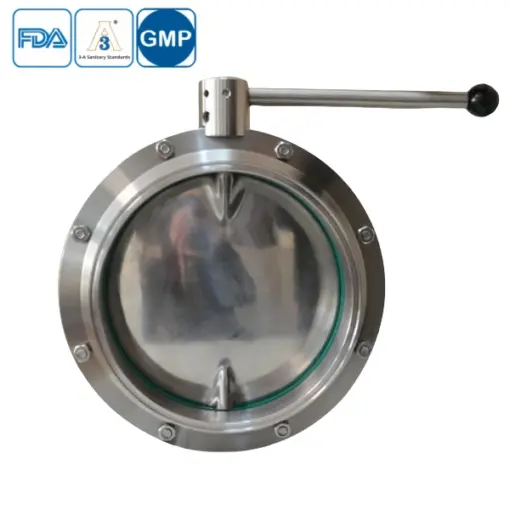

Sanitary Powder Butterfly Valve for easy process control
The Sanitary Powder Butterfly Valve is engineered for superior performance in hygienic applications, featuring 304/316L stainless steel construction for exceptional corrosion resistance. Its quick-release clamp design enables fast disassembly for cleaning and maintenance, complying with AS, BS, 3A, SMS, and DIN standards. The valve’s FDA, 3A, and CE certifications ensure compliance with strict sanitary requirements, making it ideal for pharmaceutical and food processing industries. The polished interior surface (Ra≤0.8μm) prevents material buildup, while the PTFE seat provides reliable sealing for powder handling applications.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Sanitary Powder Butterfly Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
