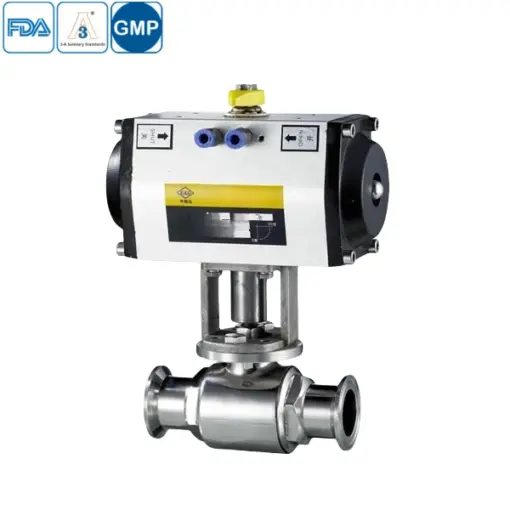

Sanitary Pneumatic Straight-Way Ball Valve for easy process control
Crafted from premium 304 or 316L stainless steel, this Pneumatic Straight-Way Ball Valve delivers uncompromising corrosion resistance and meets stringent food-grade requirements. Its full-bore design minimizes flow turbulence and prevents media accumulation, critical for maintaining hygienic conditions. The pneumatic actuator enables precise automated control with rapid response times (≤0.5 seconds), while standardized dimensions comply with ASME-BPE, 3A, DIN, and SMS specifications. Certified by FDA, 3A, and CE for material safety, it features a blowout-proof stem and PTFE seals rated for 150°C SIP sterilization. Engineered for zero cross-contamination in high-purity applications, this valve excels in dairy processing, pharmaceutical fluid transfer, and beverage production lines where automated shutoff and CIP compatibility are essential. Durable construction withstands 10,000+ cycles with minimal maintenance requirements.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder in order to safely connect this product to the system. These related fittings help ensure leak-free tri-clamp connections, stable pipeline support, and simplified maintenance for long-term hygienic operation.
Sanitary Pneumatic Straight-Way Ball Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
