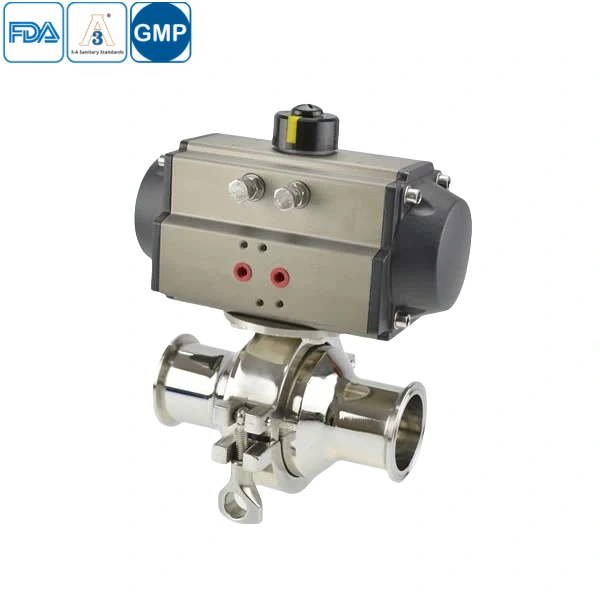

Pneumatic Non-Retention Ball Valve for easy process control
Designed for critical hygienic applications, the Pneumatic Non-Retention Ball Valve ensures zero media retention with its polished 304/316L stainless steel construction and seamless internal geometry. Featuring a quick-disassembly tri-clamp design, it enables rapid cleaning and maintenance without specialized tools while meeting AS, BS, 3A, SMS, and DIN standards for dimensional compliance. The FDA, 3A, and CE-certified valve eliminates dead zones through its full-bore ball structure, preventing bacterial growth in pharmaceutical ingredient transfer and dairy processing pipelines. Pneumatic actuation provides precise flow control and failsafe operation in automated CIP/SIP systems, reducing contamination risks during high-purity fluid handling.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to securely integrate this valve. These accessories ensure leak-free tri-clamp connections, stabilize high-pressure pipelines, and simplify disassembly for sterilization cycles in biopharmaceutical and beverage production environments.
Pneumatic Non-Retention Ball Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
