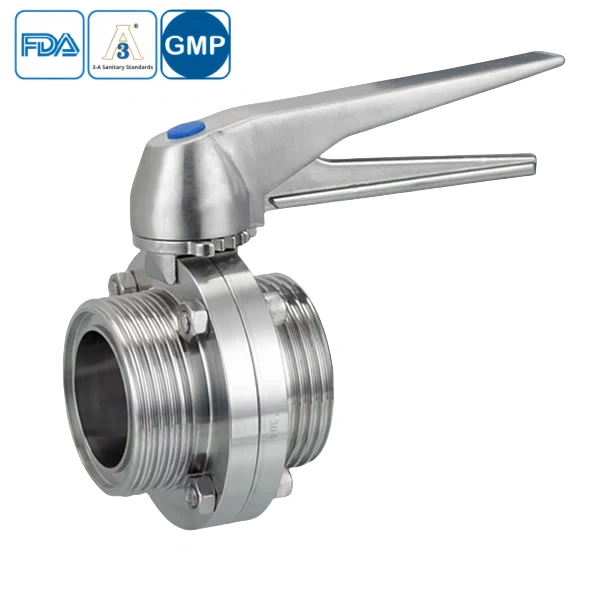

Sanitary Butterfly Valve – Gripper Handle for easy process control
The Sanitary Butterfly Valve – Gripper Handle is engineered for superior performance in hygienic applications, featuring 304/316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-release design enables fast disassembly for thorough cleaning, complying with AS, BS, 3A, SMS, and DIN standards while meeting FDA, 3A, and CE certifications. The gripper handle ensures precise flow control with minimal torque, ideal for high-purity processes in pharmaceutical and food processing industries. The valve’s tri-clamp connections provide leak-proof sealing, maintaining system integrity in CIP/SIP environments.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure integration with your pipeline. These accessories enhance leak-free performance, stabilize connections, and simplify maintenance for long-term sanitary operation.
Sanitary Butterfly Valve – Gripper Handle Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
