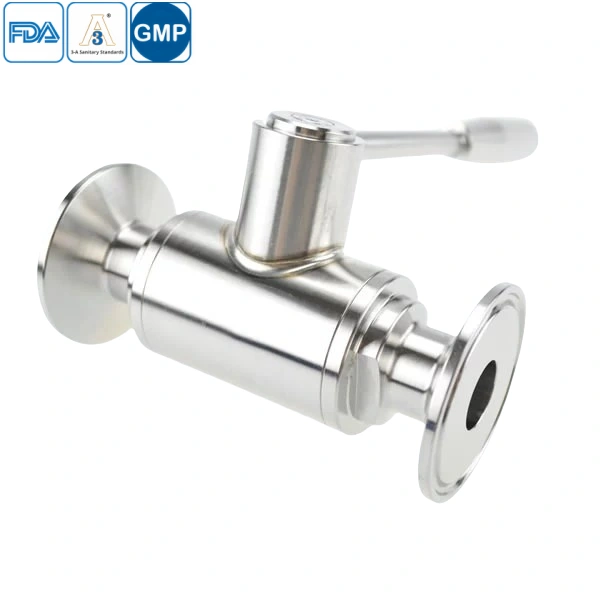

Food Grade 2-Way Ball Valve – Clamped for easy process control
The Food Grade 2-Way Ball Valve – Clamped is engineered for superior performance in hygienic applications. Constructed from 304 or 316L stainless steel, it ensures corrosion resistance and durability in demanding environments. The quick-release clamp design allows for fast disassembly and cleaning, minimizing downtime in production. Manufactured to AS, BS, 3A, SMS, and DIN standards, this valve complies with FDA, 3A, and CE certifications, making it ideal for pharmaceutical and food processing industries. Its smooth internal surface prevents contamination buildup, ensuring optimal hygiene and flow efficiency.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure tri-clamp connections, stable pipeline support, and simplified maintenance.
Food Grade 2-Way Ball Valve – Clamped Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
