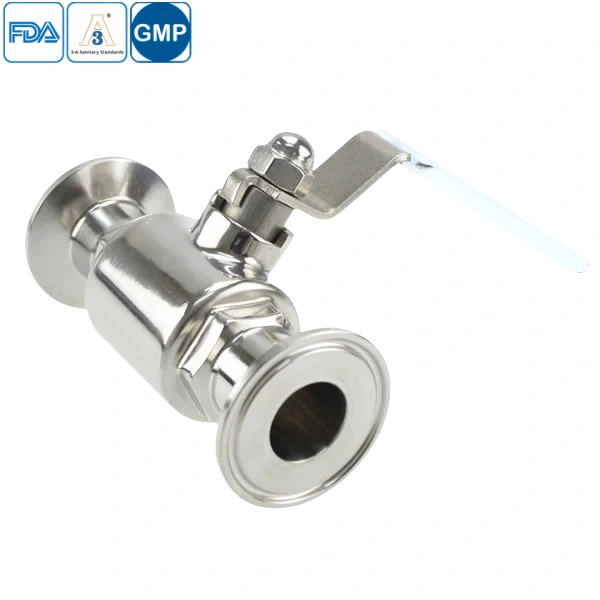

Stainless Steel Food Grade 2-Way Ball Valve – Clamped for easy process control
Our Stainless Steel Food Grade 2-Way Ball Valve is precision-engineered with 304/316L stainless steel for superior corrosion resistance and FDA compliance, ensuring optimal hygiene for pharmaceutical and dairy processing. The tri-clamp connection design enables rapid installation and disassembly, streamlining cleaning-in-place (CIP) protocols to eliminate contamination risks. Manufactured to ASME BPE, 3A, and DIN standards, this full-bore valve minimizes pressure drop while PTFE seats guarantee leak-free operation. Its ergonomic lever permits precise flow control in high-purity applications, backed by CE and EHEDG certifications for global regulatory alignment. Ideal for CIP/SIP systems, this valve maintains sterile integrity during fluid transfer operations.
Recommended Accessories
For optimal system integrity, pair this valve with sanitary clamp gaskets, heavy-duty single-pin clamps, and adjustable pipe holders. These components ensure vibration-resistant connections, proper pipeline alignment, and simplified maintenance for hygienic processing systems.
Stainless Steel Food Grade 2-Way Ball Valve – Clamped Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
