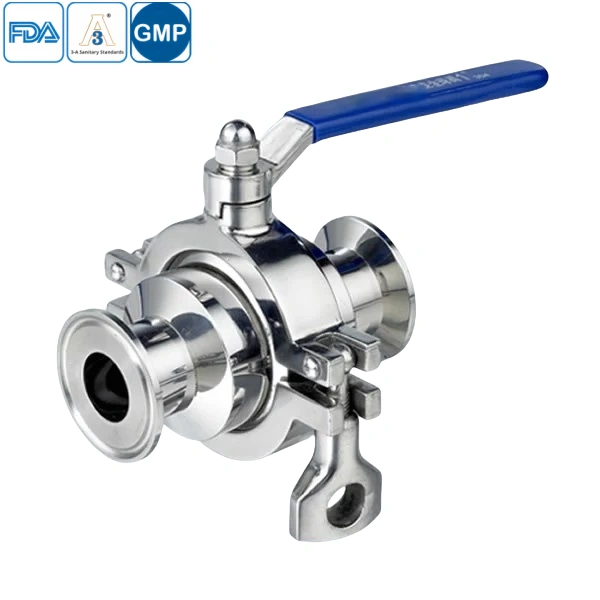

Manual Ball Valve – Clamped Non-Retention for easy process control
The Manual Ball Valve – Clamped Non-Retention is engineered for precision and durability in hygienic fluid control. Constructed from premium 304 or 316L stainless steel, it ensures corrosion resistance and compliance with FDA, 3A, and CE standards. Its tri-clamp connection design enables quick installation and disassembly, ideal for frequent cleaning in pharmaceutical and food processing industries. The valve’s full-bore structure minimizes pressure drop, while the non-retention design prevents product buildup for uncompromised sanitation.
Manual Ball Valve – Clamped Non-Retention Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
