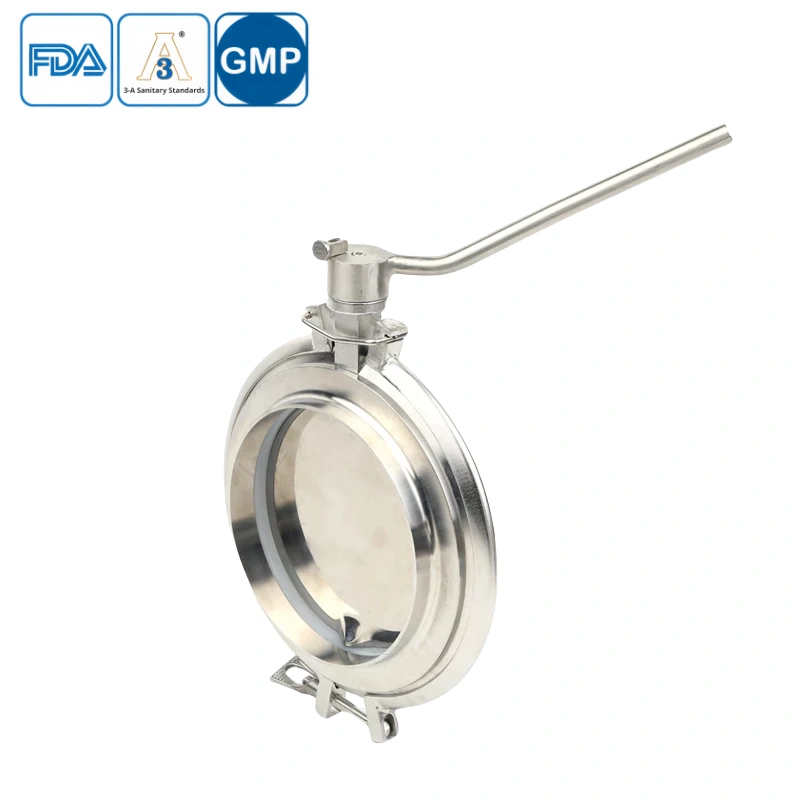

Tank Bottom Discharge Butterfly Valve for easy process control
The Tank Bottom Discharge Butterfly Valve is engineered for superior performance in hygienic applications, featuring 304/316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-release clamp design enables fast disassembly for cleaning and maintenance, complying with AS, BS, 3A, SMS, and DIN standards while meeting FDA, 3A, and CE certifications. The valve’s smooth internal surface minimizes product buildup, making it ideal for pharmaceutical and food processing industries. The precision-engineered sealing mechanism ensures leak-free operation even under high-pressure conditions.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure tri-clamp connections and stable pipeline support.
Tank Bottom Discharge Butterfly Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
