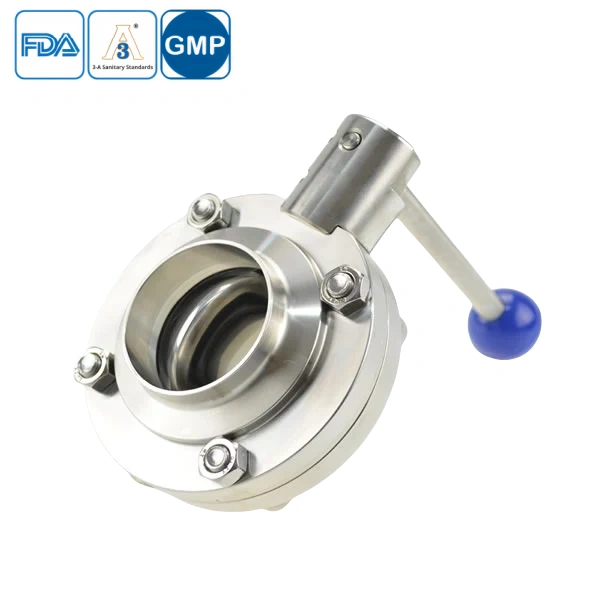

Sanitary Tri-Clamp Butterfly Valve for easy process control
The Sanitary Tri-Clamp Butterfly Valve is engineered for superior performance in hygienic applications, featuring 304/316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-release tri-clamp design enables fast installation and maintenance, while the precision-machined disc ensures tight sealing and smooth operation. Manufactured to AS, BS, 3A, SMS, and DIN standards, this valve meets FDA, 3A, and CE certifications, making it ideal for pharmaceutical and food processing industries. The compact, sanitary design minimizes dead space, ensuring easy cleaning and compliance with strict hygiene requirements.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections, stable pipeline support, and simplified maintenance for long-term hygienic operation.
Sanitary Tri-Clamp Butterfly Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
