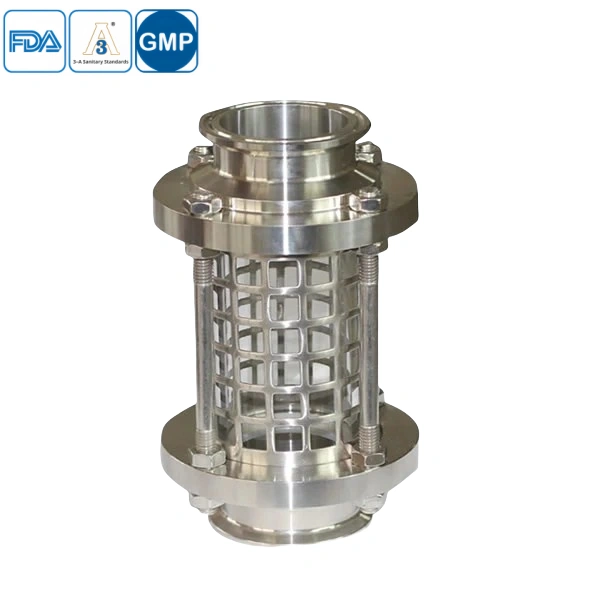

Tubular Sight View Glass for easy process control
The Tubular Sight View Glass is engineered for precision and durability in hygienic processing systems. Constructed from high-grade 304 or 316L stainless steel, it ensures corrosion resistance and compliance with AS, BS, 3A, SMS, and DIN standards, meeting FDA, 3A, and CE certifications. Its quick-release clamp design allows for effortless disassembly and cleaning, minimizing downtime in pharmaceutical and food production lines. The transparent borosilicate glass tube provides real-time visual monitoring of fluid flow, while the tri-clamp connections guarantee a secure, leak-proof seal. Ideal for CIP/SIP processes, this sight glass maintains sterility in critical applications like dairy processing and biopharmaceutical manufacturing.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Tubular Sight View Glass Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary fittings for detailed specifications.
