Sanitary welded elbow for easy process control

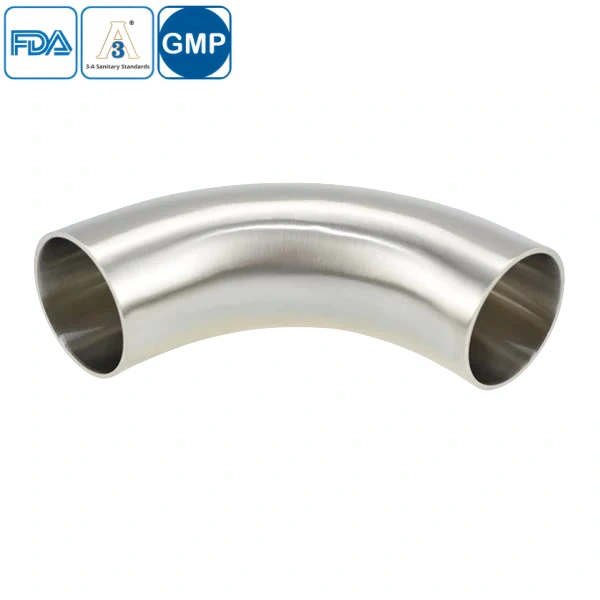

The Sanitary Welded Elbow is precision-engineered for superior performance in hygienic fluid transfer systems. Constructed from premium 304 or 316L stainless steel, this elbow ensures exceptional corrosion resistance and durability in demanding environments. Its seamless orbital welding design eliminates crevices for optimal cleanability, meeting stringent FDA, 3A, and CE standards. The tri-clamp connections enable quick assembly/disassembly, while the polished surface (Ra≤0.8μm) minimizes bacterial adhesion. Available in multiple angles (45°/90°/180°) and sizes compliant with ASME, DIN, and SMS specifications, it’s ideal for pharmaceutical processing and dairy production lines where sanitary conditions are critical.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support
Sanitary welded elbow Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
