Butt-weld 45 degree short bend for easy process control

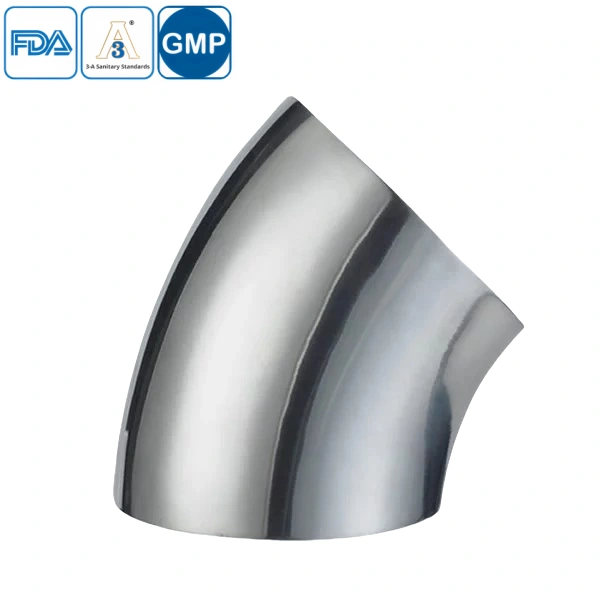

The butt-weld 45-degree short bend is precision-engineered for seamless sanitary connections in high-purity industries. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability under rigorous cleaning protocols. Its compact 45-degree design minimizes pressure drop while optimizing flow direction in tight spaces. Manufactured to AS, BS, 3A, SMS, and DIN standards, this bend complies with FDA, 3A, and CE certifications for hygienic applications. The smooth internal surface (Ra≤0.8μm) prevents bacterial buildup, making it ideal for pharmaceutical and food processing systems requiring CIP/SIP compatibility.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Butt-weld 45 degree short bend Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
