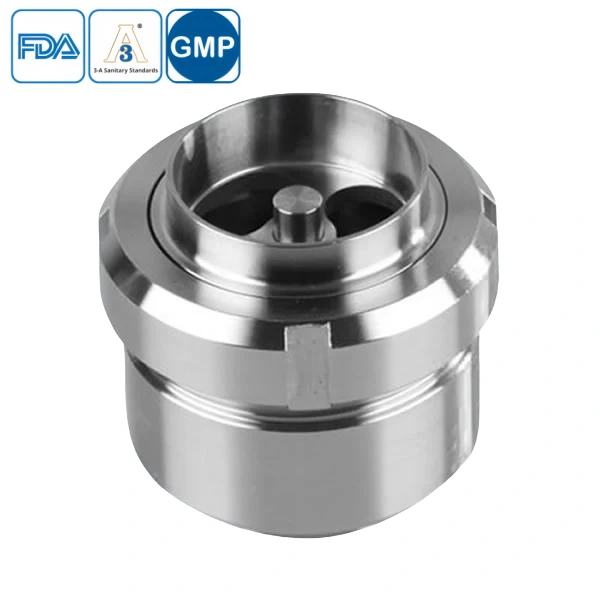

Sanitary union type check valve for easy process control
The Sanitary union type check valve is engineered for superior performance in hygienic applications, featuring 304 and 316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-release tri-clamp design enables fast disassembly for cleaning and maintenance, ensuring compliance with AS, BS, 3A, SMS, and DIN standards. The valve’s FDA, 3A, and CE certifications guarantee safety for pharmaceutical and food processing industries, while the precision-engineered sealing mechanism prevents backflow contamination. Ideal for CIP/SIP systems, this valve maintains sterile conditions in critical fluid handling process
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline integration. These components enhance operational reliability and simplify maintenance in high-purity environments.
Sanitary union type check valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
