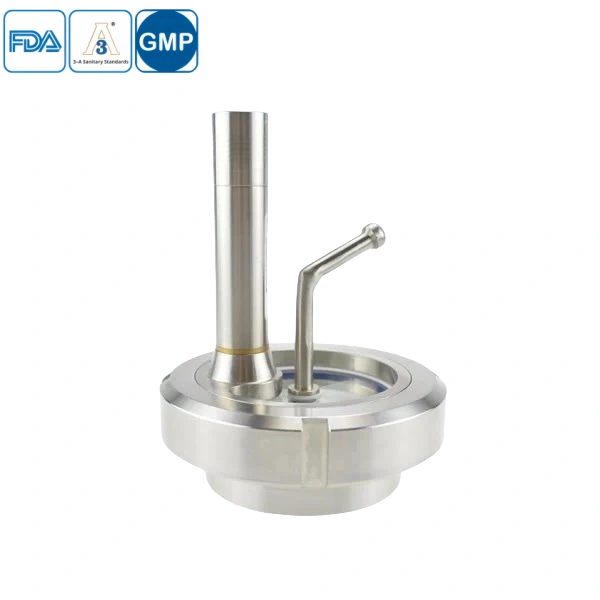

Stainless Steel Sight Glass With Wiper And Light for easy process control
The Stainless Steel Sight Glass With Wiper And Light is engineered for precision and durability in demanding industrial environments. Constructed from 304/316L stainless steel, it offers superior corrosion resistance and complies with AS, BS, 3A, SMS, and DIN standards, meeting FDA, 3A, and CE certifications. The quick-release design simplifies inspection and cleaning, while the integrated wiper and light enhance visibility for real-time process monitoring. Ideal for pharmaceutical and food processing applications, this sight glass ensures hygienic operation and long-term reliability.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Stainless Steel Sight Glass With Wiper And Light Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary fittings for detailed specifications.
