90 Degree Clamp Elbow for easy process control

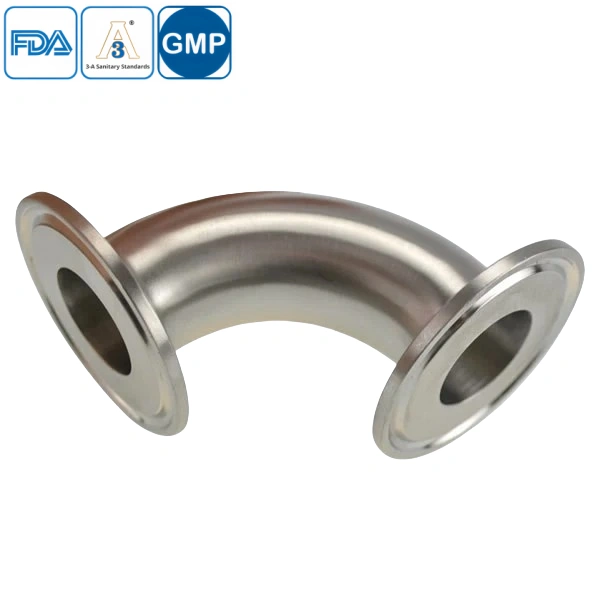

The 90 Degree Clamp Elbow is engineered for superior performance in hygienic fluid handling systems. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability in demanding environments. Its tri-clamp connection design allows for quick installation and disassembly, minimizing downtime during maintenance. Manufactured to comply with AS, BS, 3A, SMS, and DIN standards, this elbow meets FDA, 3A, and CE certifications for strict sanitary requirements. Ideal for pharmaceutical and food processing industries, the 90° bend facilitates smooth directional changes while maintaining optimal flow efficiency. The precision-polished interior surface (Ra≤0.8μm) prevents bacterial accumulation and enables thorough CIP/SIP cleaning protocols.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
90 Degree Clamp Elbow Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
