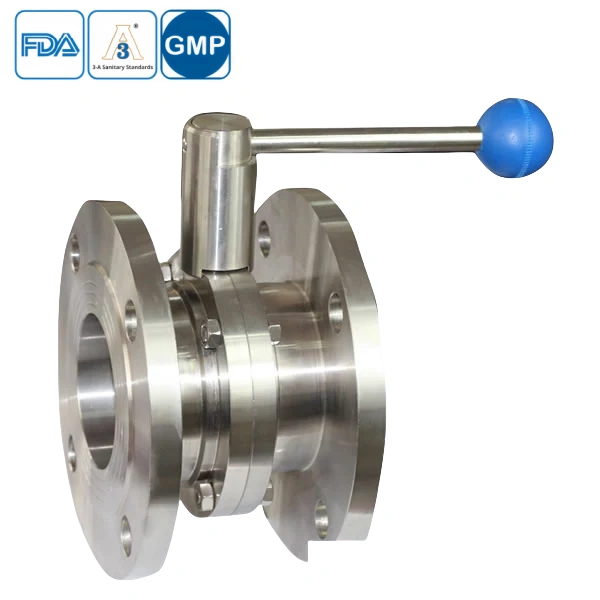

Sanitary Flange Valve for easy process control
The Sanitary Flange Valve is engineered for superior performance in hygienic applications, featuring 304 and 316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-disassembly design ensures easy cleaning and maintenance, complying with AS, BS, 3A, SMS, and DIN standards while meeting FDA, 3A, and CE certifications. The valve’s precision-engineered structure guarantees leak-free tri-clamp connections, ideal for pharmaceutical and food processing industries where hygiene and reliability are critical. With smooth internal surfaces and optimized flow paths, it minimizes contamination risks and enhances operational efficiency in high-purity systems.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure connections, stable pipeline support, and simplified maintenance for long-term hygienic operation.
Sanitary Flange Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
