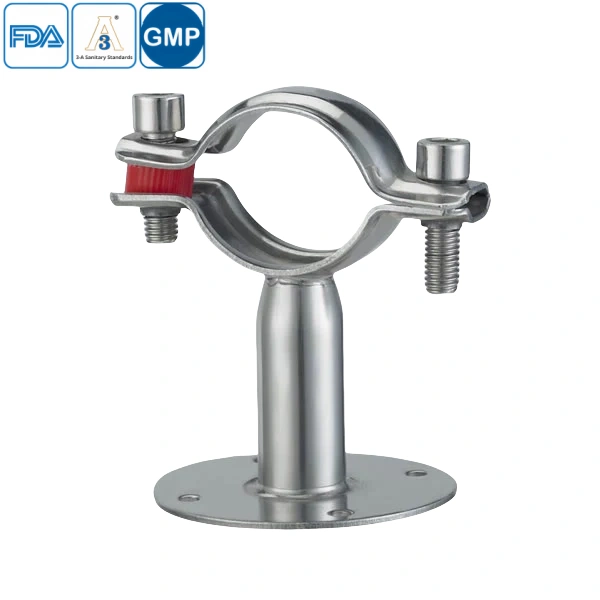

Stainless Steel Round Pipe Hanger with Base Plate for easy process control
The Stainless Steel Round Pipe Hanger with Base Plate is engineered for superior durability and hygienic performance in demanding industrial environments. Constructed from premium 304 or 316L stainless steel, it offers exceptional corrosion resistance and complies with AS, BS, 3A, SMS, and DIN standards, meeting FDA, 3A, and CE certification requirements. Its robust base plate ensures stable pipeline support, while the quick-release design simplifies installation and maintenance. Ideal for pharmaceutical and food processing applications, this hanger maintains sanitary conditions with smooth, crevice-free surfaces. The precision-engineered structure guarantees long-term reliability in high-pressure and high-temperature systems.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Stainless Steel Round Pipe Hanger with Base Plate Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
