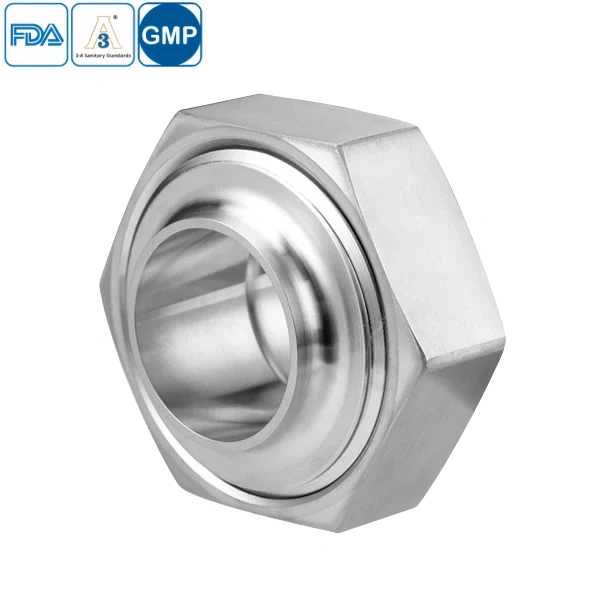

Stainless steel RJT complete union for easy process control
Crafted from premium 304/316L stainless steel, this RJT complete union ensures exceptional corrosion resistance and durability for demanding sanitary applications. Its quick-release design allows for effortless disassembly and maintenance, minimizing downtime in pharmaceutical and food processing operations. Manufactured to comply with AS, BS, 3A, SMS, and DIN standards, the fitting meets stringent FDA, 3A, and CE certification requirements. The precision-engineered tri-clamp connections provide leak-proof performance, while the polished surface (Ra≤0.8μm) ensures optimal hygiene. Ideal for CIP/SIP systems, this union maintains product integrity in high-purity fluid transfer processes.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Stainless steel RJT complete union Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
