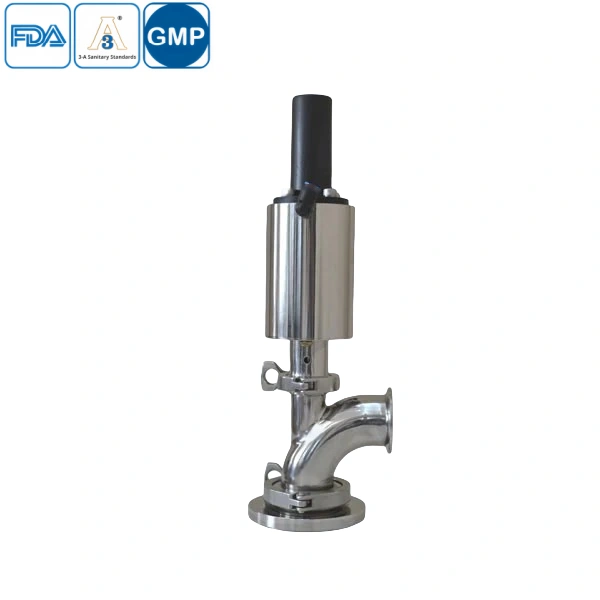

Stainless Steel Pneumatic Bending Type Tank Bottom Valve for easy process control
The Stainless Steel Pneumatic Bending Type Tank Bottom Valve is engineered for superior performance in hygienic processing systems. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability in demanding environments. Its innovative pneumatic bending mechanism allows for quick and precise flow control, while the rapid-disassembly design simplifies cleaning and maintenance. Manufactured to comply with AS, BS, 3A, SMS, and DIN standards, this valve meets stringent FDA, 3A, and CE certifications. Ideal for pharmaceutical and food processing industries, it guarantees leak-free operation and optimal hygiene in critical applications.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure tri-clamp connections, stable pipeline support, and long-term hygienic operation.
Stainless Steel Pneumatic Bending Type Tank Bottom Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
