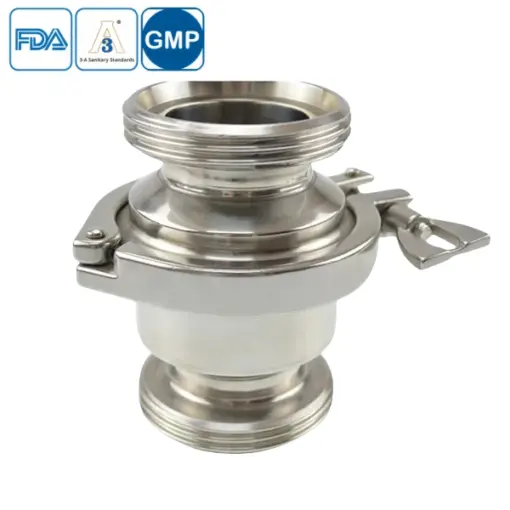

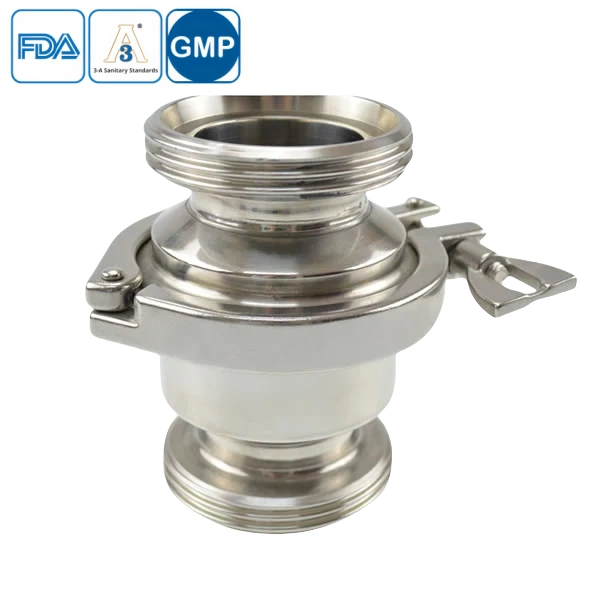

Sanitary stainless steel NRV check valve for easy process control
The Sanitary Stainless Steel NRV Check Valve is engineered for superior performance in hygienic applications, featuring 304 and 316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-release tri-clamp design ensures easy disassembly for thorough cleaning and maintenance, complying with AS, BS, 3A, SMS, and DIN standards. The valve’s FDA, 3A, and CE certifications guarantee compliance with stringent sanitary requirements, making it ideal for pharmaceutical and food processing industries. The precision-engineered sealing mechanism prevents backflow effectively, ensuring system integrity and minimizing contamination risks.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support. These accessories enhance long-term hygienic operation and simplify maintenance.
Sanitary stainless steel NRV check valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
