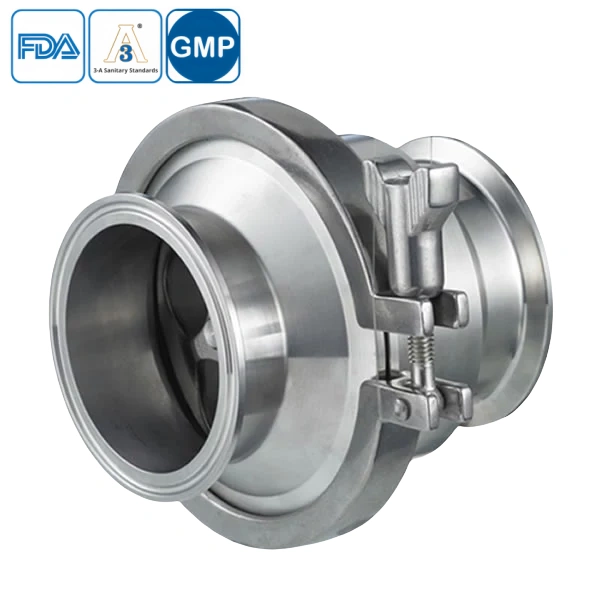

Sanitary NRV check valve with clamped for easy process control
The Sanitary NRV check valve with clamped is engineered for superior performance in hygienic applications. Constructed from premium 304 or 316L stainless steel, it ensures excellent corrosion resistance and durability, meeting FDA, 3A, and CE standards. Its quick-release clamp design allows for fast disassembly and cleaning, minimizing downtime in production lines. Precision-machined to comply with AS, BS, DIN, and SMS standards, this valve guarantees leak-free tri-clamp connections. Ideal for pharmaceutical and food processing industries, it maintains sterile conditions while preventing backflow contamination.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure connections and stable pipeline support. These components enhance leak-proof performance and simplify maintenance for long-term hygienic operation.
Sanitary NRV check valve with clamped Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
