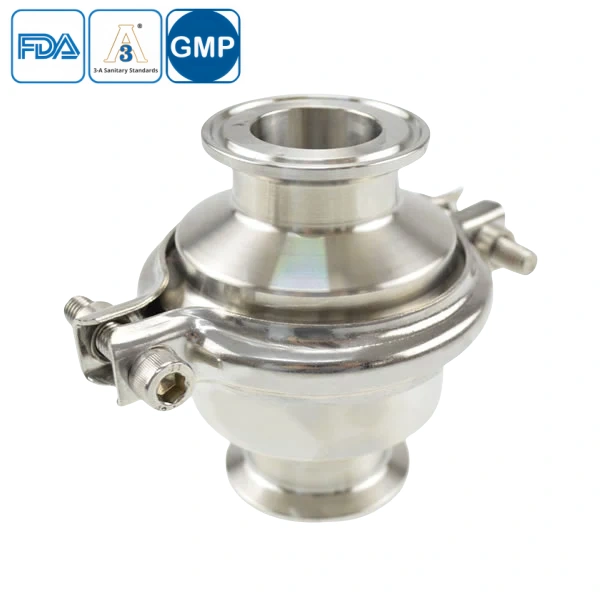

Sanitary Tri Clamped Check Valve for easy process control
The Sanitary Tri Clamped Check Valve is engineered for superior performance in hygienic fluid control applications. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability in demanding environments. Its tri-clamp connection design allows for quick disassembly and easy cleaning, making it ideal for pharmaceutical and food processing industries where sanitation is critical. The valve complies with AS, BS, 3A, SMS, and DIN standards, meeting FDA, 3A, and CE certifications for safety and reliability. The spring-assisted disc mechanism guarantees swift, leak-proof sealing, minimizing pressure drop and backflow risks.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure tri-clamp connections, stable pipeline support, and simplified maintenance
Sanitary Tri Clamped Check Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
