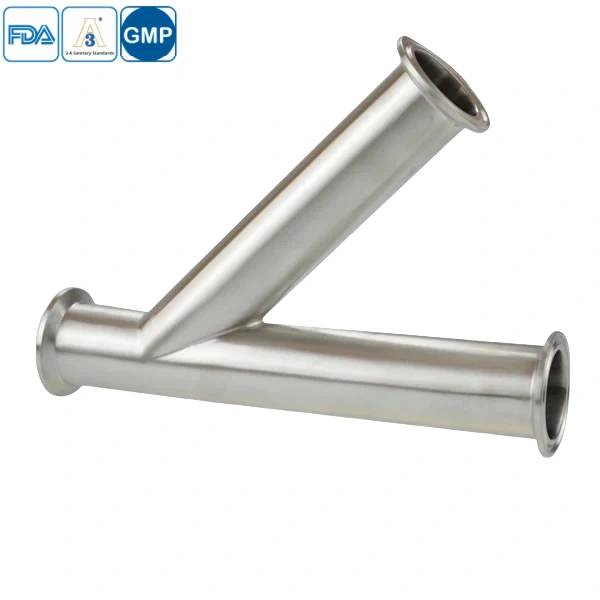

Stainless steel lateral Y tee for easy process control
Crafted from premium 304/316L stainless steel, our stainless steel lateral Y tee ensures exceptional corrosion resistance and durability for demanding sanitary applications. The precision-engineered tri-clamp connections enable quick assembly/disassembly while maintaining leak-proof performance, complying with AS, BS, 3A, SMS, and DIN standards. Its optimized hygienic design features a smooth internal surface (Ra≤0.8μm) to prevent bacterial buildup, meeting FDA, 3A, and CE certifications. Ideal for pharmaceutical and food processing systems, this fitting facilitates efficient fluid diversion with minimal pressure drop.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Stainless steel lateral Y tee Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
