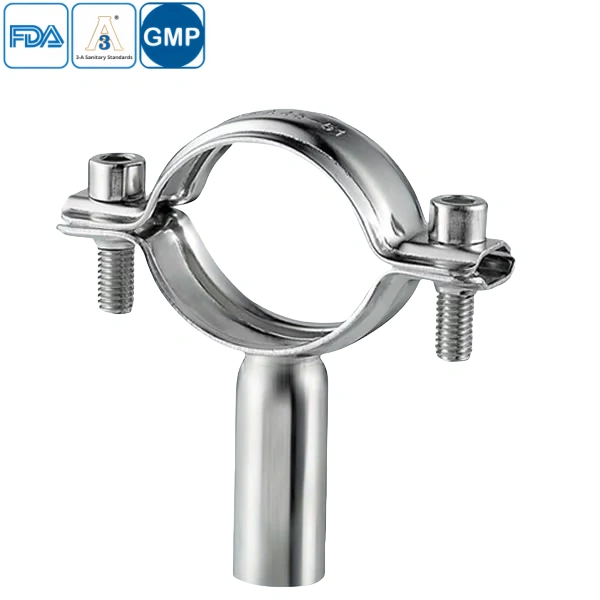

Stainless Steel Welded Pipe Holder for easy process control
Crafted from premium 304 and 316L stainless steel, our Stainless Steel Welded Pipe Holder ensures exceptional corrosion resistance and durability in demanding environments. The precision-welded structure provides secure pipeline support, while the quick-release clamp design simplifies installation and maintenance. Manufactured to AS, BS, 3A, SMS, and DIN standards, this holder meets stringent FDA, 3A, and CE certifications for hygienic compliance. Ideal for pharmaceutical and food processing applications, its smooth surface finish prevents bacterial buildup, ensuring long-term system integrity.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Stainless Steel Welded Pipe Holder Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
