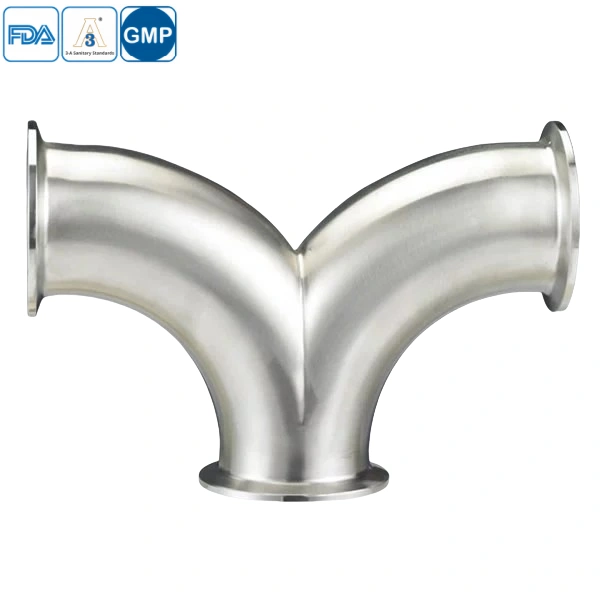

Sanitary Stainless Steel 90 Degree Clamp Double Elbow for easy process control
The Sanitary Stainless Steel 90 Degree Clamp Double Elbow is engineered for superior performance in hygienic fluid handling systems. Constructed from premium 304 or 316L stainless steel, this elbow ensures exceptional corrosion resistance and durability, meeting FDA, 3A, and CE certification standards. Its precision-engineered 90-degree design allows for smooth directional changes in pipelines while maintaining optimal flow efficiency. The quick-release tri-clamp connection system enables fast installation and disassembly, reducing downtime during maintenance. Manufactured to comply with AS, BS, DIN, and SMS standards, this double elbow is ideal for pharmaceutical processing, dairy production, and food & beverage applications where sanitary conditions are critical. The seamless inner surface prevents bacterial buildup, ensuring compliance with strict hygiene requirements.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Sanitary Stainless Steel 90 Degree Clamp Double Elbow Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
