Sanitary 45 degree clamp-weld elbow for easy process control

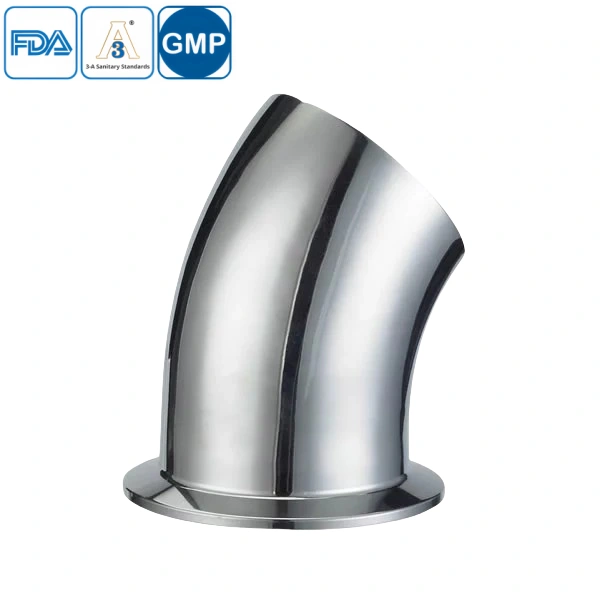

The 45-degree clamp-weld elbow is engineered for precision and durability in hygienic piping systems. Constructed from high-grade 304 or 316L stainless steel, it ensures excellent corrosion resistance and compliance with AS, BS, 3A, SMS, and DIN standards. Its tri-clamp connection design allows for quick installation and disassembly, minimizing downtime during maintenance. The smooth internal surface (Ra≤0.8μm) prevents bacterial buildup, making it ideal for pharmaceutical and food processing applications. This product meets FDA, 3A, and CE certifications, guaranteeing safety in critical fluid handling processes.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Sanitary 45 degree clamp-weld elbow Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
