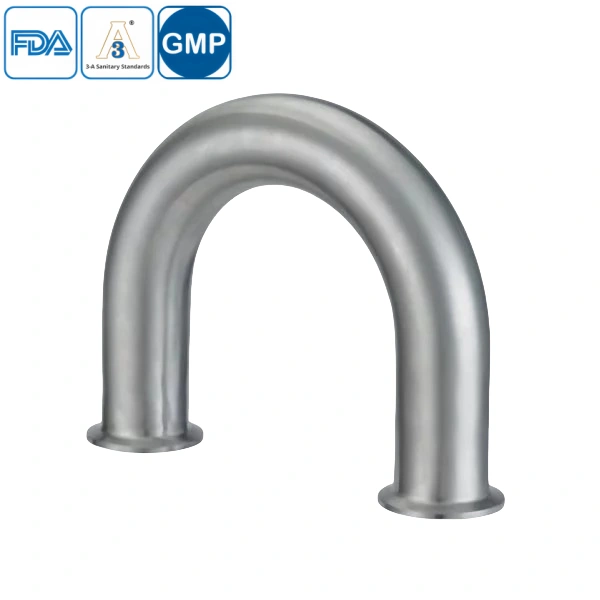

BPE Sanitary 180 Degree Clamp U Type Elbow for easy process control
The BPE Sanitary 180 Degree Clamp U Type Elbow is engineered for superior performance in hygienic piping systems. Crafted from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability. The quick-release clamp design enables fast assembly and disassembly, minimizing downtime during maintenance. Manufactured to AS, BS, 3A, SMS, and DIN standards, this elbow meets stringent FDA, 3A, and CE certifications for food-grade compliance. Its smooth internal surface prevents bacterial buildup, making it ideal for pharmaceutical and food processing industries. The precision-engineered U-bend design optimizes flow efficiency while maintaining system integrity under high-pressure conditions.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
BPE Sanitary 180 Degree Clamp U Type Elbow Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
