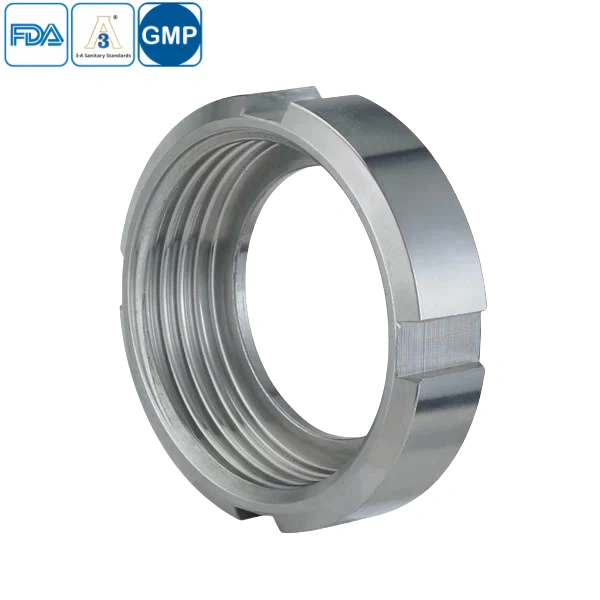

Sanitary SMS Round Nut for easy process control
The Sanitary SMS Round Nut is engineered for superior performance in hygienic piping systems, featuring 304 and 316L stainless steel construction for exceptional corrosion resistance and durability. Its precision-machined design ensures seamless tri-clamp connections, while the quick-release mechanism simplifies disassembly for efficient cleaning and maintenance. Manufactured to comply with AS, BS, 3A, SMS, and DIN standards, this round nut meets FDA, 3A, and CE certification requirements, making it ideal for pharmaceutical and food processing applications. The ergonomic shape enhances grip during installation, reducing operational downtime in high-purity fluid handling systems.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Sanitary SMS Round Nut Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
