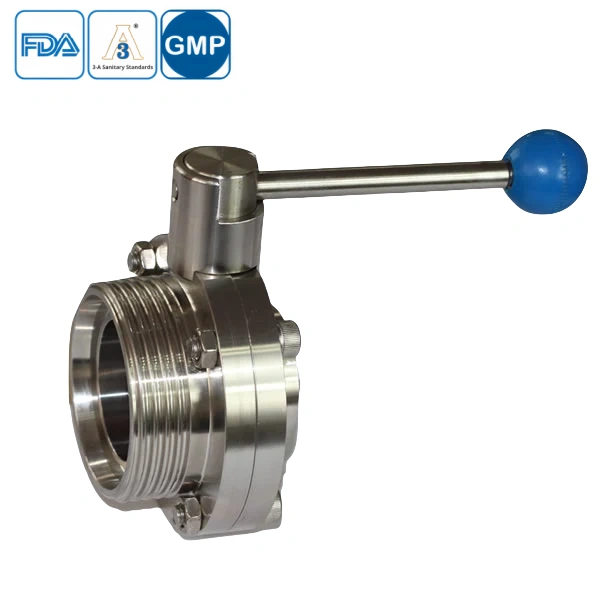

Sanitary Manual Male-Welded Butterfly Valve for easy process control
The Sanitary Manual Male-Welded Butterfly Valve is engineered for precision and durability in hygienic applications. Constructed from premium 304 or 316L stainless steel, it ensures corrosion resistance and compliance with FDA, 3A, and CE standards. Its male-welded tri-clamp ends enable secure, leak-free connections, while the quick-release design simplifies disassembly for cleaning and maintenance. The valve’s compact, crevice-free body meets AS, BS, DIN, and SMS dimensional standards, making it ideal for pharmaceutical and food processing industries where sanitary conditions are critical. The ergonomic manual handle provides smooth operation, ensuring precise flow control in high-purity systems.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-proof connections and stable pipeline support.
Sanitary Manual Male-Welded Butterfly Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
