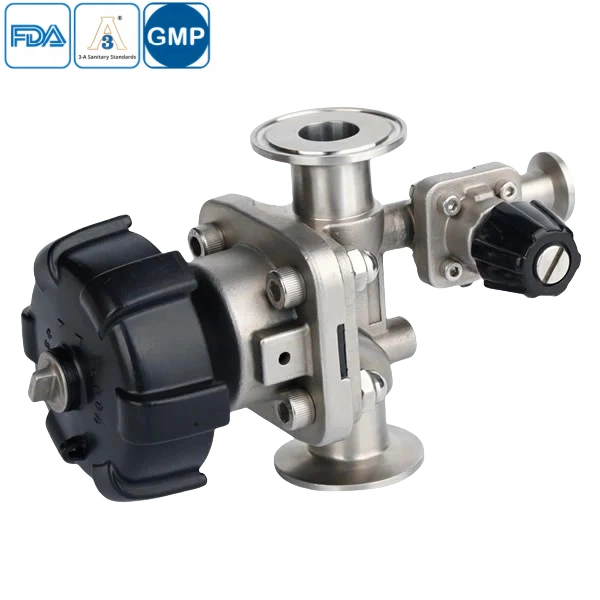

Sanitary Diaphragm Valve with Drain for easy process control
The Sanitary Diaphragm Valve with Drain is engineered for superior performance in hygienic applications. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability. The valve features a quick-disassembly design for easy cleaning and maintenance, complying with AS, BS, 3A, SMS, and DIN standards. It also meets FDA, 3A, and CE certifications, making it ideal for pharmaceutical and food processing industries. The integrated drain function enhances efficiency by allowing easy system flushing, reducing downtime.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure tri-clamp connections, stable pipeline support, and simplified maintenance.
Sanitary Diaphragm Valve with Drain Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
