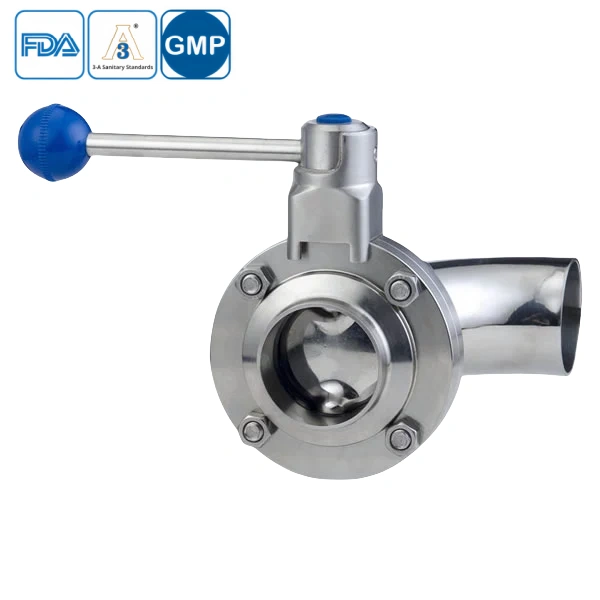

Sanitary manual butterfly valve weld for easy process control
The sanitary manual butterfly valve weld is engineered for superior performance in hygienic applications, featuring 304 and 316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-release design allows for fast disassembly and cleaning, ensuring compliance with AS, BS, 3A, SMS, and DIN standards, as well as FDA, 3A, and CE certifications. The valve’s precision-welded body guarantees leak-free operation, while the ergonomic handle provides smooth manual control. Ideal for pharmaceutical and food processing industries, this valve ensures contamination-free fluid handling in critical sanitary systems.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to securely integrate this valve into your pipeline. These components enhance leak-proof tri-clamp connections, stabilize piping networks, and streamline maintenance for long-term hygienic operation.
Sanitary manual butterfly valve weld Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
