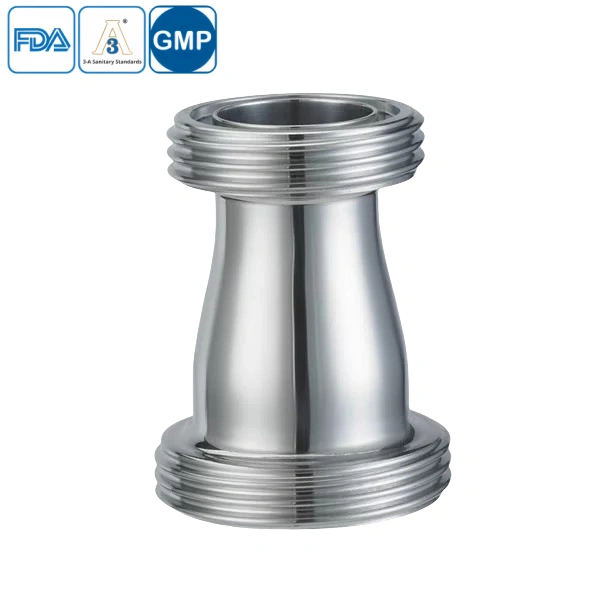

Sanitary stainless steel male thread concentric reducer for easy process control
The Sanitary stainless steel male thread concentric reducer is engineered for precision and durability in hygienic applications. Constructed from 304 or 316L stainless steel, it ensures superior corrosion resistance and compliance with FDA, 3A, and CE standards. Its male thread design allows for secure, leak-proof connections, while the concentric structure ensures smooth flow transition in pipelines. Manufactured to meet AS, BS, DIN, and SMS specifications, this reducer is ideal for pharmaceutical and food processing industries where sanitary conditions are critical. The polished interior surface (Ra ≤ 0.8μm) minimizes bacterial buildup, enhancing cleanability for long-term performance.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Sanitary stainless steel male thread concentric reducer Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
