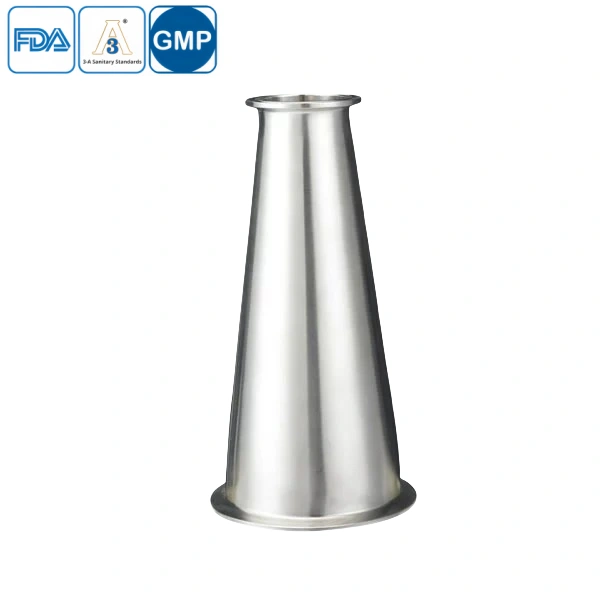

Sanitary Clamped Concentric Reducer for easy process control
The Sanitary Clamped Concentric Reducer is engineered with premium 304/316L stainless steel for superior corrosion resistance and durability in hygienic applications. Its tri-clamp connection design ensures quick installation and disassembly, minimizing downtime during maintenance. Manufactured to AS, BS, 3A, SMS, and DIN standards, this reducer complies with FDA, 3A, and CE certifications, guaranteeing safety for sensitive industries. Ideal for pharmaceutical and food processing systems, it maintains smooth flow transition while meeting strict sanitary requirements. The precision-polished interior surface (Ra≤0.8μm) prevents bacterial buildup, making it a reliable choice for high-purity fluid handling.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Sanitary Clamped Concentric Reducer Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
