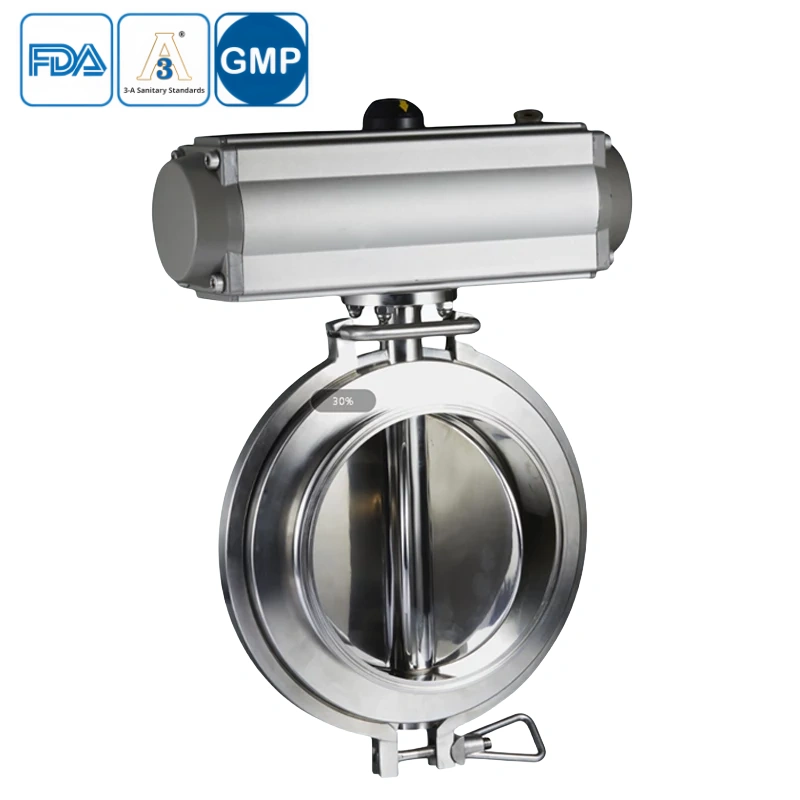

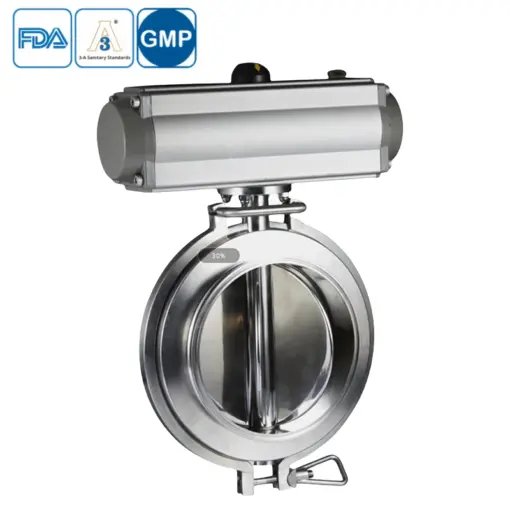

Sanitary Pneumatic Welded Butterfly Valve with Actuator for easy process control
The Sanitary Pneumatic Welded Butterfly Valve with Actuator is engineered for high-performance fluid control in hygienic applications. Constructed from premium 304 or 316L stainless steel, it ensures corrosion resistance and compliance with FDA, 3A, and CE standards. Its tri-clamp connections enable quick installation and maintenance, while the pneumatic actuator provides precise flow regulation. Ideal for pharmaceutical and food processing industries, this valve features a polished surface (Ra≤0.8μm) to prevent bacterial buildup and meets AS, BS, DIN, and SMS dimensional standards for seamless integration.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free connections and stable pipeline support.
Sanitary Pneumatic Welded Butterfly Valve with Actuator Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
