Manual Clamped Diaphragm Valve for easy process control

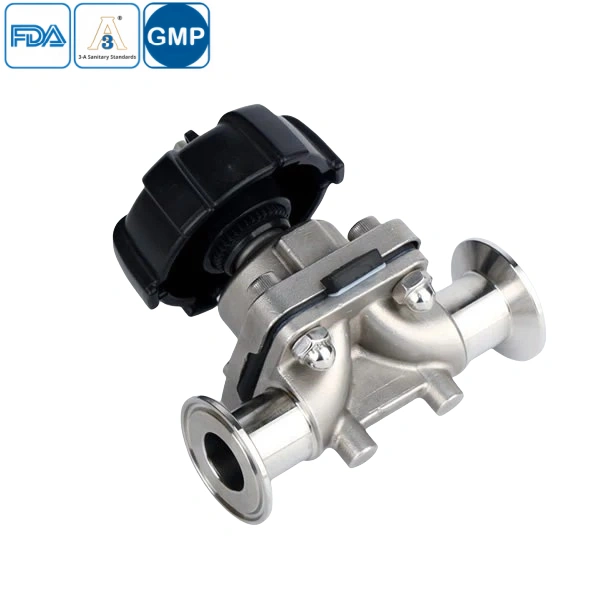

The Manual Clamped Diaphragm Valve is engineered for precision and durability in hygienic applications. Constructed from 304 or 316L stainless steel, it ensures corrosion resistance and compliance with AS, BS, 3A, SMS, and DIN standards, meeting FDA, 3A, and CE certifications. Its quick-disassembly design simplifies maintenance and inspection, while the diaphragm mechanism eliminates dead zones for contamination-free operation. Ideal for pharmaceutical and food processing industries, this valve provides reliable shut-off and smooth media flow control. The tri-clamp connections ensure secure, leak-proof installations in high-purity systems.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to complement this valve. These components enhance leak-free connections, pipeline stability, and long-term hygienic performance.
Manual Clamped Diaphragm Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
