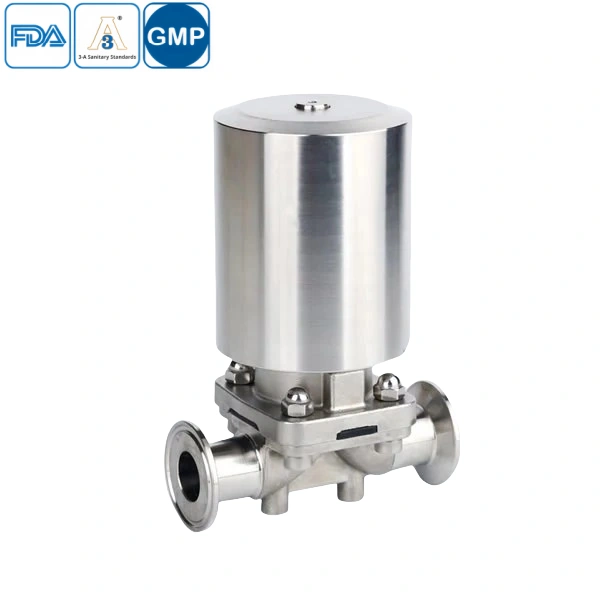

Pneumatic Diaphragm Valve with SS Actuator for easy process control
The Pneumatic Diaphragm Valve with SS Actuator is engineered for superior performance in hygienic processing systems. Constructed from 304/316L stainless steel, it ensures corrosion resistance and durability in demanding environments. The quick-release diaphragm design allows for easy maintenance and minimizes downtime, while compliance with AS, BS, 3A, SMS, and DIN standards guarantees seamless integration into existing pipelines. Certified by FDA, 3A, and CE, this valve is ideal for pharmaceutical and food processing applications where sanitary conditions are critical. Its pneumatic actuator provides precise flow control, making it a reliable choice for automated systems.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support. These accessories enhance long-term hygienic operation and simplify maintenance.
Pneumatic Diaphragm Valve with SS Actuator Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
