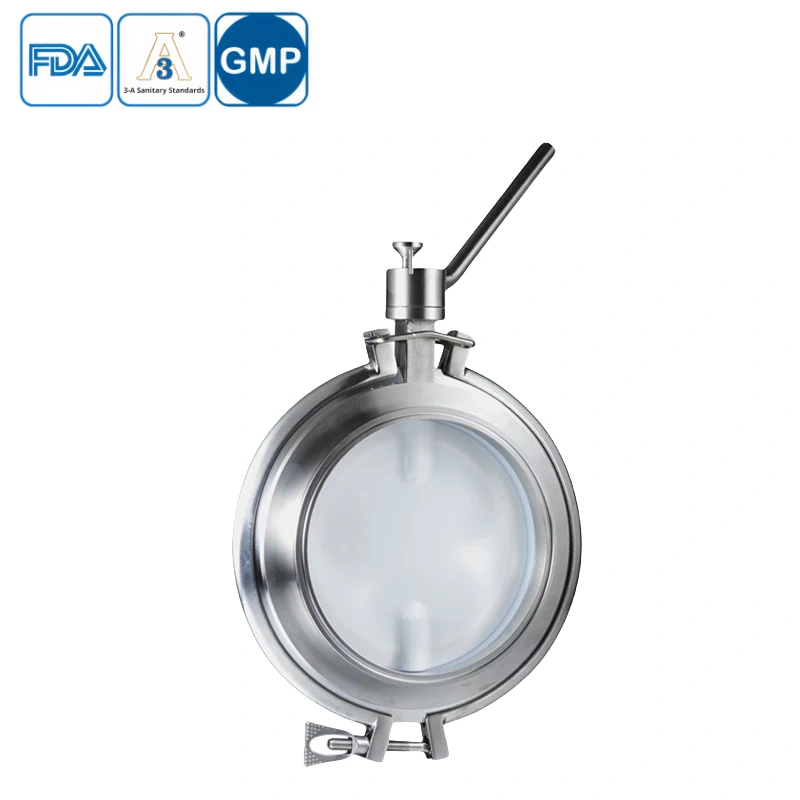

Hygienic Powder Tight Butterfly Valve for easy process control
The Hygienic Powder Tight Butterfly Valve is engineered for superior performance in demanding sanitary applications. Constructed from premium 304 or 316L stainless steel, it ensures excellent corrosion resistance and durability. The valve features a quick-release design for easy disassembly and cleaning, complying with AS, BS, 3A, SMS, and DIN standards. Certified by FDA, 3A, and CE, it meets stringent hygiene requirements for pharmaceutical and food processing industries. Its tight sealing mechanism prevents powder leakage, making it ideal for handling dry bulk materials.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure tri-clamp connections, stable pipeline support, and simplified maintenance.
Hygienic Powder Tight Butterfly Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
